Potentialudligning

The equipotential bonding kit is used to achieve earth bonding, or protective (equipotential = EP) bonding of Axelent X-Guard guard fencing and X-Rail fall protection. EP bonding is recommended by EN IEC 60204-1 section 8 for many applications. The kit is comprised of a “plug-and-play” connector...

Læs mere

Få dit tilbud nu

Navn *

Telefon

Country

E-mail *

Emne *

Meddelelse *

I have taken note of Axelent's data protection policy, which you can read here.

I agree that Axelent will process my personal information to contact me.

Design sikkerhedsløsninger

Design dine sikkerhedsløsninger i vores tegneværktøj, Safety Design

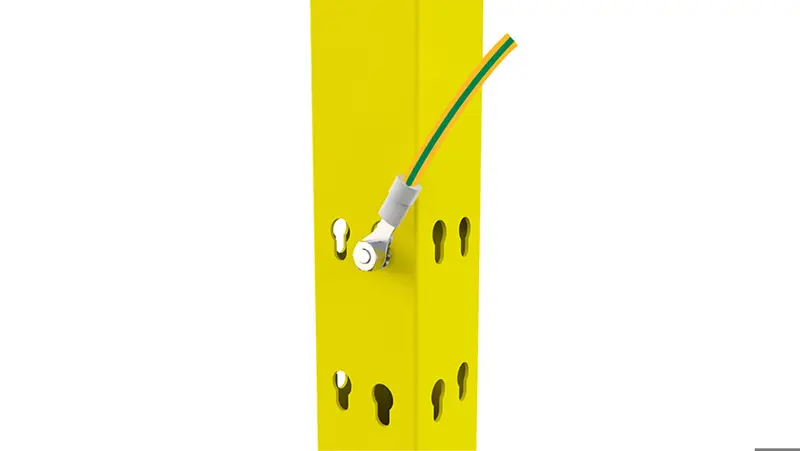

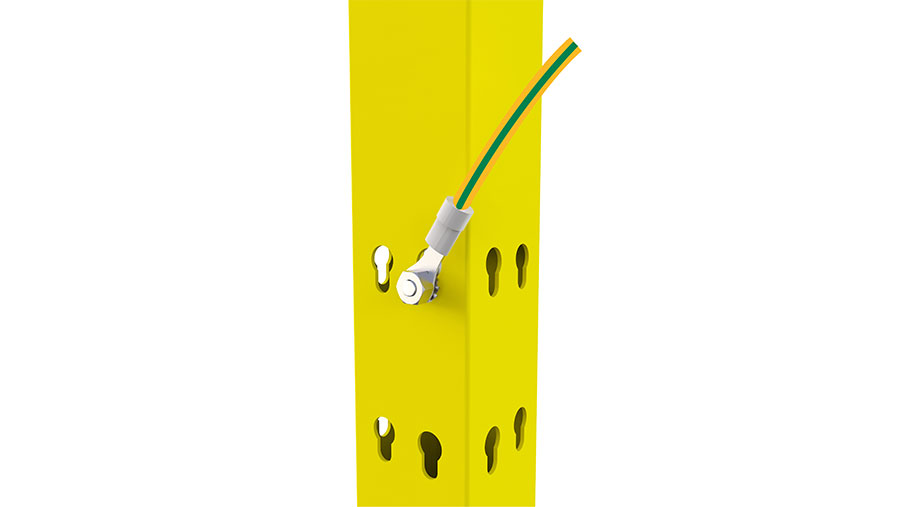

Equipotential bonding kit mounted on post

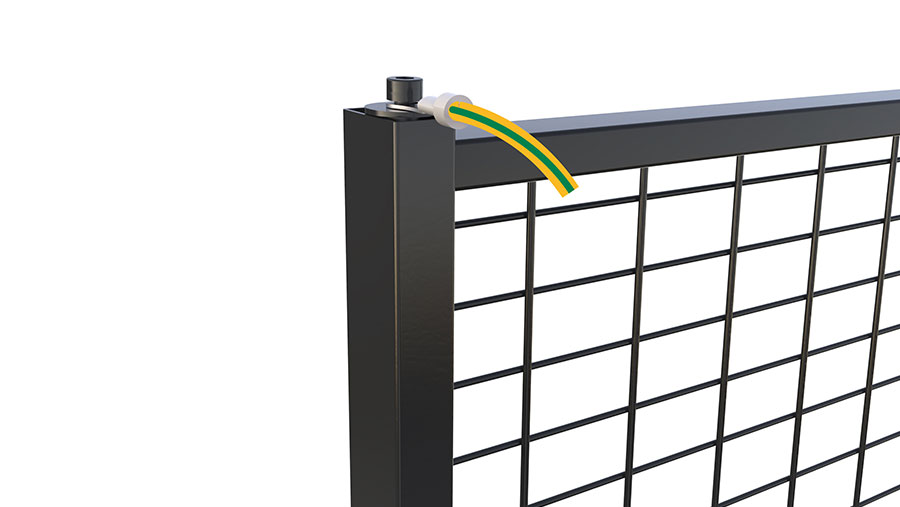

Equipotential bonding kit mounted on panel

Vælg CAD-format

1/4

2/4

3/4

4/4

Modeller

CAD	Artikel	Beskrivelse
	T01-43-16	Equipotential bonding clamp KIT, post, cable length 650mm, 16mm2 (10pcs)
	T01-43-6	Equipotential bonding clamp KIT, post, cable length 650mm, 6mm2 (10pcs)
	T01-44-16	Equipotential bonding clamp KIT, panel, cable length 650mm, 16mm2 (10pcs)
	T01-44-6	Equipotential bonding clamp KIT, panel, cable length 650mm, 6mm2 (10pcs)

Se mere Se mindre

Downloads

Potentialudligning

Produktinformation

Equipotential bonding kit

Monteringsvejledning

Equipotential bonding kit

Produktinformation

Equipotential bonding kit

Monteringsvejledning

X-Guard Technical

Brochure

Produktinformation

The kit is comprised of a “plug-and-play” connector for the posts and the panels, which are preassembled with a tightening screw and a connecting wire. The connector for the posts is slid through one of the key holes, the connector for the panels is slid into one of the vertical frame tubes from top or bottom. After tightening, good connection is achieved. Application of the kit has been successfully tested to IEC 61537, section 11.1.2 by an independent certification institute.

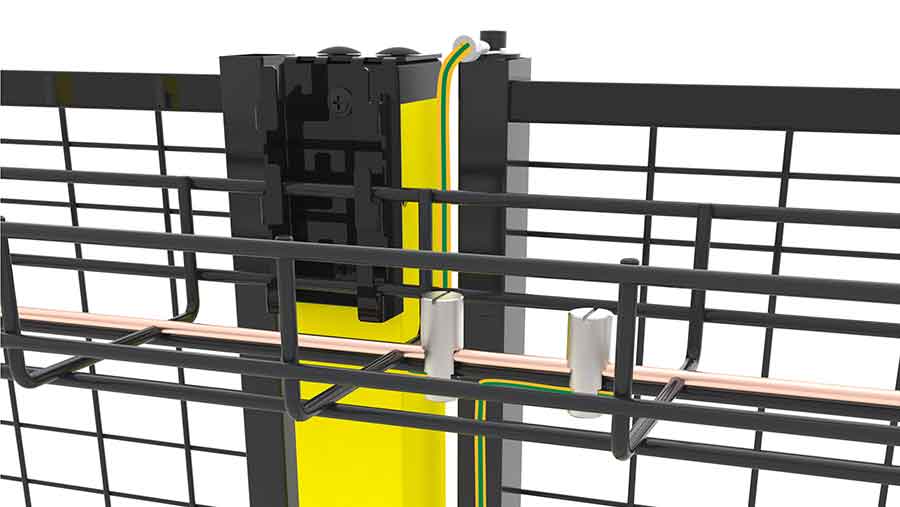

The free end of the wire should be connected to a common equipotential bonding conductor with clamping connector. We recommend placing the common EP conductor in an Axelent wire tray/X-Tray.

Note! Not suitable in combination with ED-paint, Plastic panels and/or Sheet metal panels

Se mere Se mindre
